DT-1300

Continuously introducing advanced production and testing equipment, strictly adhering to the production process of the ISO9001:2000 international quality management system. The braking force of the diaphragm type air chamber push rod is proportional to the input air pressure; The parking brake compartment is a braking device that uses spring energy storage and deflation. The inflation pressure enters the pressure chamber through 12 ports, generating a force acting on the piston.

Categories：

BRAKE CHAMBER

Keywords：

BRAKE CHAMBER

Dite

Tel:0086-15968582787

E-mail:sl@china-brake.net

Related products

Online consulting

Product introduction

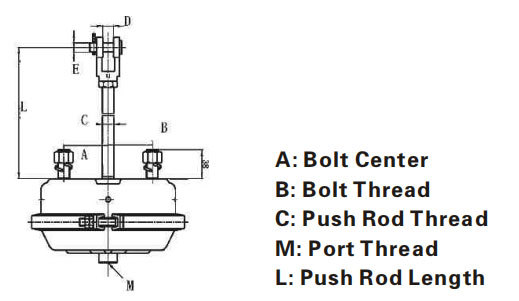

DT NO.:	TYPE	STROKE	A	B	C	M	L	REF NO.
DT- 1300A	T30	64	120 .7	5/8 "- 11	5/8 "- 11	Z-3/8	yourself	——
DT- 1300B	T24	64	120 .7	5/8 "- 11	5/8 "- 11	Z-3/8	yourself
DT- 1300C	T20	64	120 .7	5/8 "- 11	5/8 "- 11	Z-3/8	yourself
DT- 1300D	T16	57	76	7/ 16 "-20	1/2 "-20	Z-3/8	yourself
DT- 1300E	T12	57	76	7/ 16 "-20	1/2 "-20	Z-3/8	yourself
DT- 1300F	T9	45	76	7/ 16 "-20	1/2 "-20	Z-3/8	yourself

When the car brakes, air enters the brake chamber from the intake port, causing the diaphragm to deform under the action of air pressure, pushing the push rod and driving the brake adjustment arm, rotating the brake cam, and pressing the brake shoe friction plate towards the brake drum to produce braking.

The braking force of the diaphragm type air chamber push rod is proportional to the input air pressure; The parking brake compartment is a braking device that uses spring energy storage and deflation. The inflation pressure enters the pressure chamber through 12 ports, generating a force acting on the piston. When the pressure exceeds 0.65MPa, the force acting on the piston is greater than the pre tension force of the spring, and the piston rises to its limit, releasing the brake; If the air in the pressure chamber is completely emptied, the spring pushes the piston downwards, pushing the main brake push rod to produce braking, and the braking strength is related to the spring preload force; When the pressure in the pressure chamber is below 0.65MPa, the braking force generated by the chamber is inversely proportional to the pressure value, so emergency braking can be implemented.
